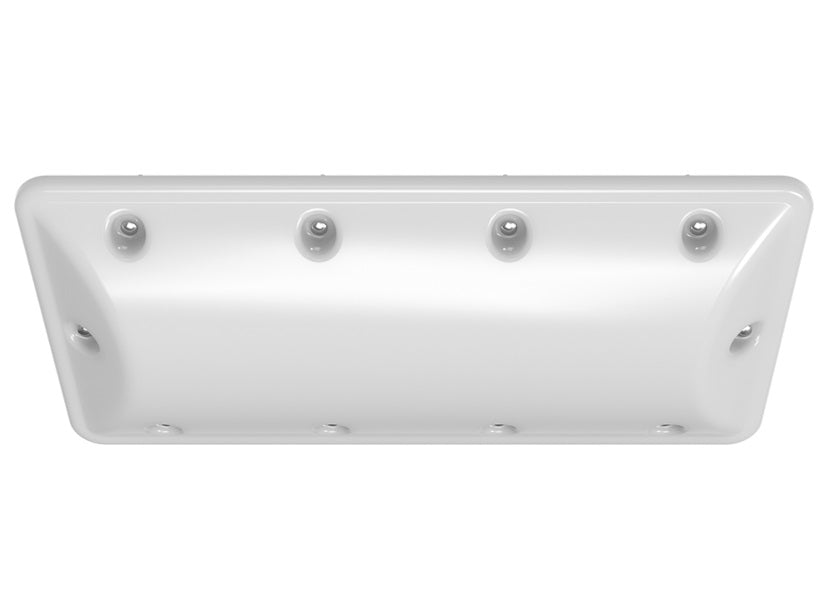

Shat-R-Shield 080-GDL Ironclad® General Duty Linear 80-Watt LED Large Area Light Fixture

PART# 080GDL50CMNVHPC00000001

  • Lumen:
    7,400lm
  • Wattage:
    80 Watt
  • Shat-R-Shield
Available in increments of 1
Call For Price
Ordering more than 10? Request a quote and we’ll back to you with our lowest price.
More Information
Type of AreaIndustrial & Warehouse, Factory / Industrial
CertificationsCUL Listed, Made in America, UL
DimmableNo
Lamp Life:>75,000 Hours
Dimensions24.5" x 11.6" x 2.2"
Length24.5"
Width11.6"
Height2.2"
Lumen Output:7,400
ManufacturerShat-R-Shield
Product Warranty5 year limited warranty
Part Number080GDL50CMNVHPC00000001
TechnologyLED - New Fixture
VoltageMultivolt 120V-277V
Wattage80 Watt
Weight Each7.1 lbs

ShineRetrofits Input:
Introducing the Ironclad® General Duty Linear Light (G.D.L), specifically designed to meet the lighting needs of larger areas in correctional and behavioral applications. This innovative fixture combines a sleek, low-profile design with robust construction, delivering a lighting solution that can withstand the harshest conditions.

The G.D.L's standout feature is its extreme low profile and compact housing, allowing it to seamlessly integrate into any environment with limited space. Built to withstand abuse, the Ironclad® G.D.L features a rugged construction that can handle the challenges of demanding environments. Its sturdy housing and rimless edge design enhance its durability, making it resistant to impacts, tampering, and vandalism. You can rely on the G.D.L to maintain its functionality and aesthetics even in the most challenging situations.

Features:
• Flush ceiling mounted with (8) spike anchors or optional recessed tamper-proof 1/4” stainless steel bolts or cinder block fasteners.
• Extreme Durability - Lens is made of highly impact-resistant 1/4” thick polycarbonate with a minimum IK10 impact rating.
• No areas to hide or conceal contraband.
• Installation - Anchored flush onto ceiling with (8) spike anchors or optional recessed • tamper-proof 1/4” stainless steel bolts or cinder block fasteners.
• Tight bolt pattern offers ligature resistance.

Specifications:
• Lumens: 3800 (40W), 7400 (80W)
• Count Light Lumens: 530 (Only in 40W units)
• Light Engine CCT: 5000K, 4000K
• Count Light CCT: 2700K
• Life Hours: L70>75,000 Hours; Projected >100,000 Hours
• Footcandles: 35 ftc at the desk level; 22 ftc at the floor
• Voltage: Universal 120-277V
• Weight: 6.35 lbs. (40W, 7.1 lbs. (80W)
• Dimensions: 24.5” long x 11.6" wide x 2.2” tall
• Warranty: 5 year limited warranty
