Due to global supply chain issues, stock levels can change. Please contact support to verify stock levels. Call 1-800-983-1315

RAB Lighting BLED24 24 Watt LED Square Bollard Landscape Light Fixture

PART# BLED24

$832.00
Please call 1-800-983-1315 for the lowest available price
  • Lumen:
    1,045-1,430lm
  • Wattage:
    24 Watt
  • RAB Lighting
Available in increments of 1
Ordering more than 10? Request a quote and we’ll back to you with our lowest price.
More Information
UPC 19813036366
Certifications Lighting Facts, LM79 / LM80, Made in America, ROHS, UL Listed
Dimmable No
Lamp Life: 100,000 Hours
CRI 69 (5100K) >80 (4000K and 3000K)

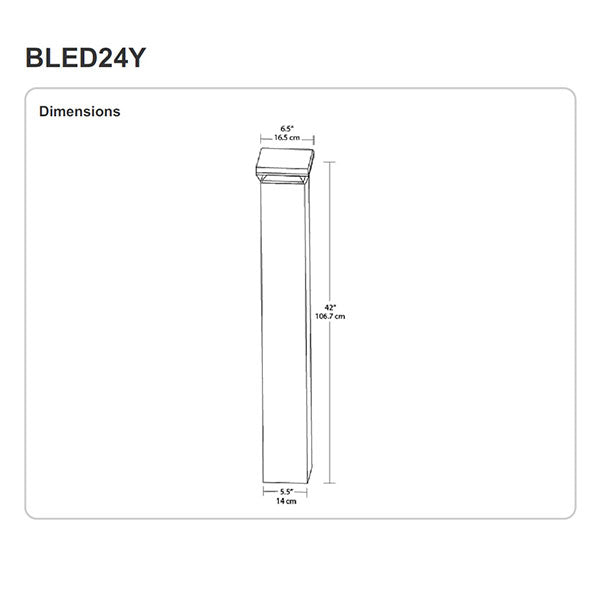

Dimensions 42.00" x 6.50"
Width 6.50"
Height 42.00"
Lumen Output: 1,045-1,430
Manufacturer RAB Lighting
Product Warranty 5 Year
Part Number BLED24 Series
Minimum Start Temperature -40 Deg F
Technology LED
Voltage Multivolt 120V-277V
Wattage 24 Watt

ShineRetrofits Input:

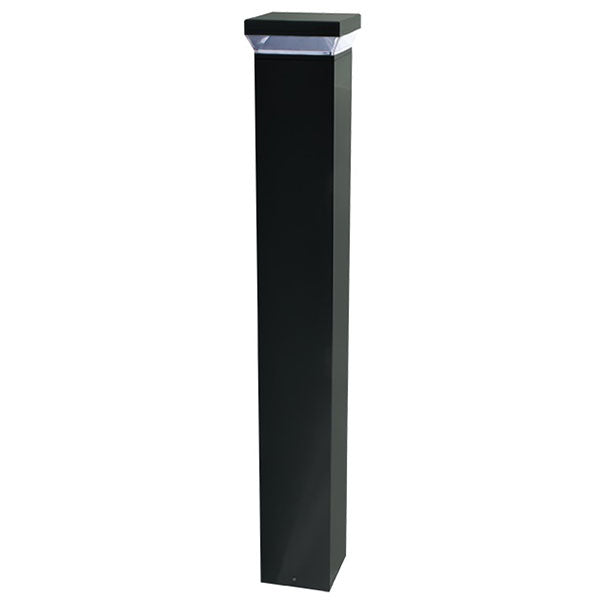

This 24 Watt LED Bollard landscape fixture with square post and head provides excellent downward lighting with a 360° lighting pattern and no glare.  It will increase energy savings and provides a sturdy installation with its base mount design and durable construction with vandal-resistant polycarbonate lens.  Includes a 5 year warranty and delivers a long life of 100,000 hours.  Select from a variety of color temperatures, finish and other options.

Listings:
• UL Listing: Suitable for wet locations.

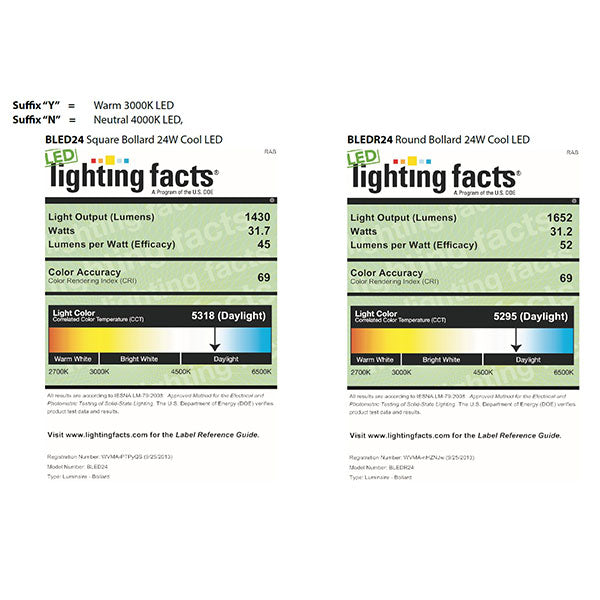

• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

LED Characteristics:
• LEDs: 6Watt multi-chip, long life LEDs
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color UniformityRAB's range of CCT follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting Products, ANSI C78.377-2011.

Construction:
• Cold Weather Starting: Minimum starting temperature is -40°F / -40°C.
• Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures.
• Thermal Management: Cast aluminum Thermal Management system for optimal heat sinking.  The BLED is designed for cool operation, maximum efficiency and long life by minimizing LED junction temperature.
• Housing:  Die-cast aluminum with extruded aluminum bollard shaft
• Lens: Clear, vandal resistant polycarbonate
• Mounting: Four (4) anchor bolts provided for concrete pad mounting. Internal base support has leveling screws.

• Reflector:  Specular polycarbonate.
• Gaskets: High-temperature silicone gaskets seal out moisture.
• Finish: Environmentally friendly polyester powder coatings are formulated for high-durability, long-lasting color, contains no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.

Options:
BLED24 with Battery Backup includes two field-replaceable, high-temperature maintenance-free, nickel cadmium batteries and is suitable for wet locations.  Battery backup UL 924 Listed Emergency Lighting Powe Supply.
