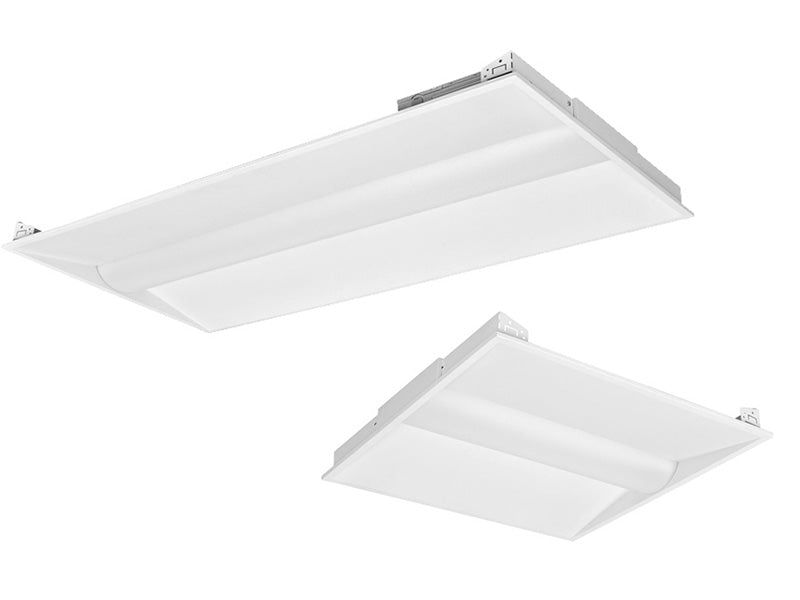

NaturaLED FXTF G1 Series Wattage and Color Selectable LED Troffer Light Fixture Dimmable
NaturaLED FXTF G1 Series Wattage and Color Selectable LED Troffer Light Fixture Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | FXTF45SW/2X4/8CCT3G1 |
|---|---|
| Type of Area: | Schools, Hospitals, Commercial Offices, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 2,640 - 5,850 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 70W HID Equivalent, 100W HID Equivalent, Dimmable, DLC Approved, ETL Listed, FCC Compliant, LM79 / LM80, ROHS |
| CRI: | 80 |
| Width: | 23.7" |
| Length: | 23.7" - 47.7" |
| Height: | 1.97" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 8.00 - 15.00 lbs |
| Manufacturer: | NaturaLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
NaturaLED's FXTF G1 Series LED Troffer Light Fixture is an ideal solution for interior lighting needs. Available in 2'x2' and 2'x4' sizes, this DLC Premium Troffer is designed for TBar/Grid ceilings and offers excellent light distribution and color consistency. It produces up to 5,850 lumens and features selectable wattages and color temperatures (3500K/4000K/5000K). With a beam angle of 115°, it is ETL-listed and suitable for damp locations. The lightweight fixture has a bug-free lens design, and optional accessories such as an Emergency Driver, Motion Sensor, and Flange Mount Kit are available for purchase.
Features:
• DLC Standard
• Damp Location
• ETL Listed
• Selectable Wattages
• Selectable Color Temp: 3CCT (3500K/4000K/5000K)
• Voltage: 120-277V, 120-347V
• Power Factor: >0.9
• Surge Protection: 2KV
• Beam Angle: 115°
• Dimmable: 0-10V
• CRI: 80
• Operating temperature: - 4°F - 104°F
• Easy installation for retrofit replacement
• Available in 2’ or 4’ length
• Material: Steel and PC lens
• 5-Year Warranty
• Optional for Purchase: Emergency Driver, Motion Sensor, Flange Mount Kit
