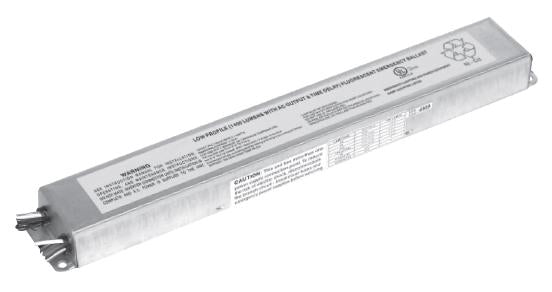

Mule Lighting MF40-LP500 Low Profile Emergency Ballast for T5/T8 Lamps Image

Mule Lighting MF40-LP1300 Low Profile Emergency Ballast for T5/T8 Lamps

PART #MF40-LP1300

  • Mule Lighting
  • Lumen:
    1300 lm
Spec Sheet
About Product
  • Specification
  • Description
    • Best Seller Product
    • Certifications
      NEC, NFPA, UL Listed

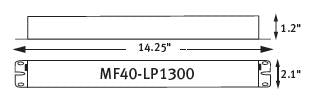

    • Dimensions
      14.25" x 2.1" x 1.2"
    • Length
    • Width
    • Height
    • Lumen Output:
    • Manufacturer
      Mule Lighting
    • Part Number
    • Technology
      Emergency Ballast
    • Voltage
      Multivolt 120V-277V
    • Weight Each
      3.00 lbs
    • Ballast Start Type
      Instant Start
    • Beam Angle
  • Low profile for t5 or t8 flourescent lamps. Embassy fluorescent ballasts emergency ballasts allow the same fixture to be used for both normal and emergency operation. In the event of a power failure, the emergency ballast switches to emergency mode and operates one or two of the existing lamps for a minimum of 90 minutes. Each emergency ballast contains a battery, charger and inverter circuit in a single package. The emergency ballast can be mounted in the fixture wireway or on top of the fixture, and is UL listed for factory installation or retrofit applications.

    Benefits & Features

    • Compatible with electronic (including those containing end-of-life shutdown circuits), standard magnetic, energy saving and dimming AC ballasts
    • Compatible with most standard and HO T5 miniature bi-pin, T8 bi-pin and rapid-start (4-pin) long compact lamps
    • Easy ballast and channel installation
    • Install inside, on top or remotely from fixture
    • Operates one lamp
    • Can be used with switched or un-switched lighting fixtures
    • Compact battery case
    • Reliable, high-frequency inverter
    • Premium sealed nickel-cadmium battery
    • 120/277 VAC operation
    • Test switch and LED charge indicator light supplied standard
    • Low power consumption
    • End-of-lamp-life compatible
    • Temperature Range Standard: 0°C - 50°C (32°F - 122°F)


    Click here for product spec sheet

  • NEC
  • NFPA
  • UL Listed
