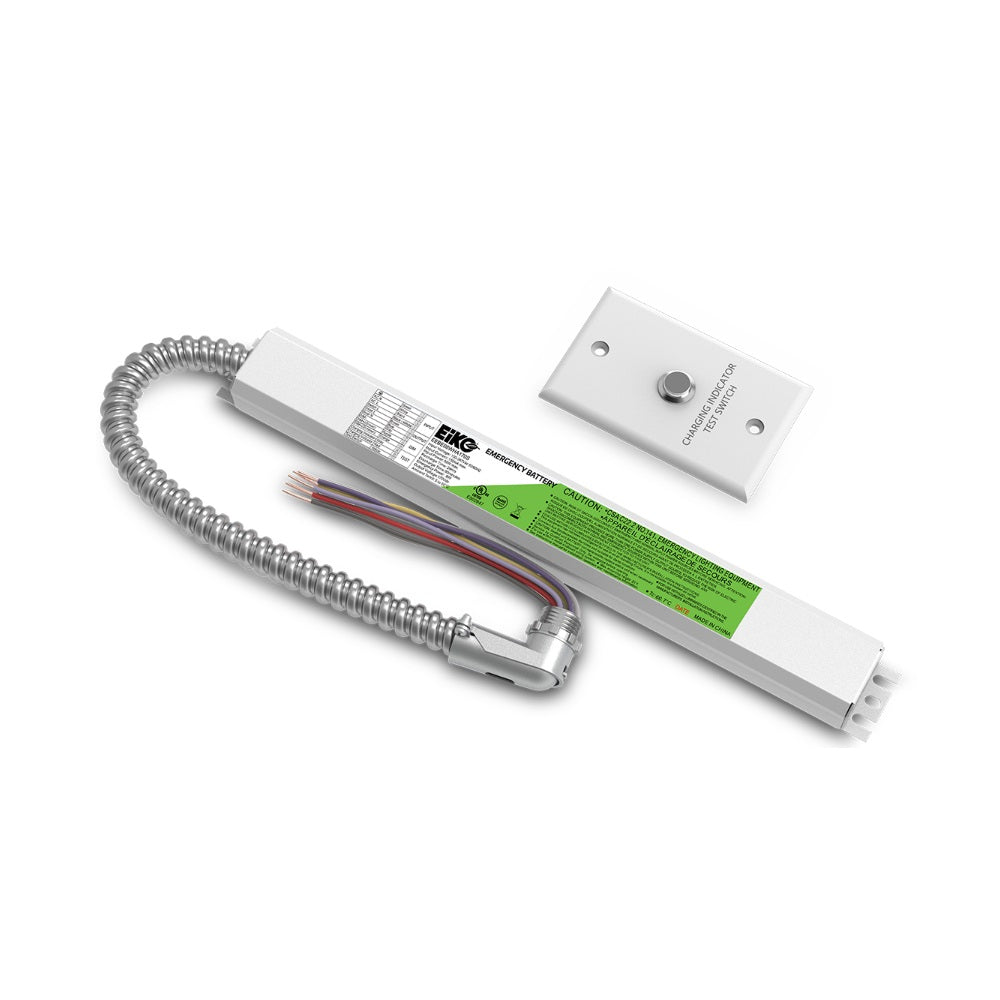

Eiko EEBE08WHA170S 8-Watt 100mA Single-End External Emergency Battery Kit


Please call 1-800-983-1315 for the lowest available price
  • EiKO
Available in increments of 1
Ordering more than 10? Request a quote and we’ll back to you with our lowest price.
More Information
UPC 031293116741
Type of Area Apartment Buildings, Industrial & Warehouse, Hotels, Commercial Offices, Factory / Industrial, Hospitality
Certifications FCC Compliant, ROHS, cULus
Dimmable No
Dimensions 13.6" x 1.54" x 0.98"
Length 13.6"
Width 1.54"
Height 0.98"
Manufacturer Eiko
Product Warranty 5 year limited warranty
Part Number EEBE08WHA170S
Minimum Start Temperature -20 Deg F
Power Factor >0.5

ShineRetrofits Input:
Eiko's 8-Watt External Emergency Battery Kit is specifically designed to address emergency lighting needs for fixtures with only input wiring available. With its constant power design, it ensures a consistent light output for a duration of 90 minutes. Equipped with a rated wattage, it provides uninterrupted emergency operating power throughout this period. The kit features an IP65-rated illuminated test button and faceplate, allowing for convenient usage in remote locations.

• Provides power for emergency lighting needs with fixtures that only have input wiring available
• Constant power design provides constant light output for 90 minutes
• 90 minutes of emergency operating power at the rated wattage
• Includes IP65-rated illuminated test button and faceplate, for use when remote location of button is desired or necessary

• Evaluated to UL 924 requirements; UL Classified for field installation
• Meets CEC Title 20 (California Energy Commission) efficiency standards
• Rated for use in plenum, damp location, and enclosed and gasketed fixtures

• Input voltage: 120-347V
• Input power: 10W (max)
• Output voltage: 170VDC
• Power Factor: >0.5
• Emergency operation: ≥90 mins
• Recharge: 24 hrs

• -23°F to 122°F (-5°C to 50°C) operating temperature

• 5-year limited warranty. Additional warranty options are available. Contact EiKO for details
