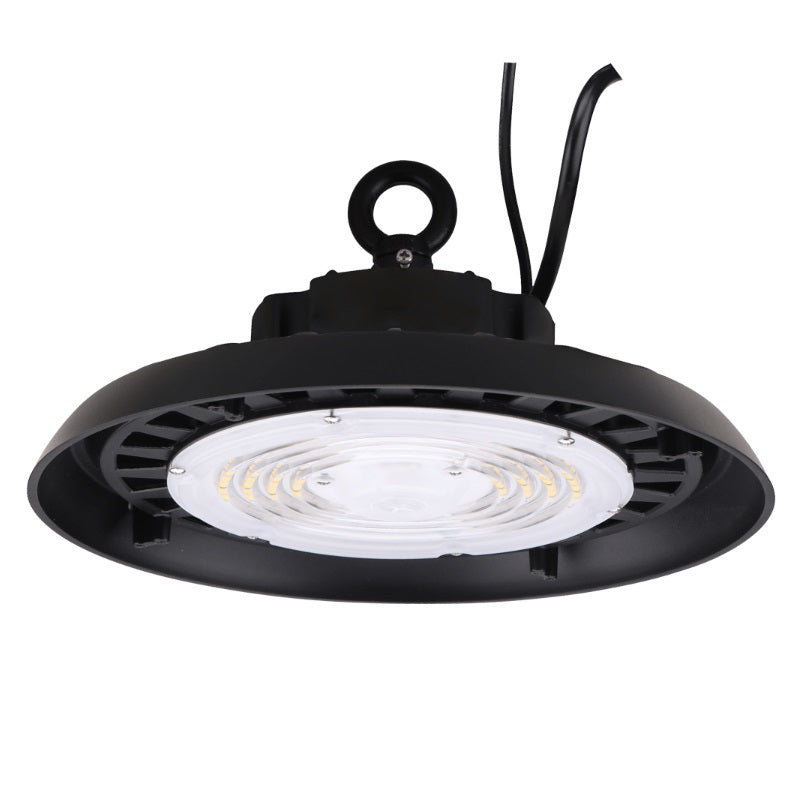

Eiko BAYE3 DLC Premium LED Round High Bay Light Fixture Dimmable Replaces Up to 750W HID
PART# BAYE3
Web Price
Please call 1-800-983-1315 for the lowest available price- Lumen:15,000 - 36,000lm
- Wattage:240 Watt
-
HID Equivalent | 400 Watt HID, 600 Watt HID, 750 Watt HID |
---|---|
Type of Area | Coolers & Freezers, Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Manufacturing Plants, Factory / Industrial |
Certifications | DLC Premium, FCC Compliant, ROHS, UL Listed, IP65 |
Dimmable | Yes |
Lamp Life: | >54,000 Hours |
CRI | >80 |
Dimensions | See Spec Sheet |
Lumen Output: | 15,000 - 36,000 |
Manufacturer | Eiko |
Product Warranty | 5 year limited warranty |
Part Number | BAYE3 Series |
Minimum Start Temperature | -40 Deg F |
Technology | LED - New Fixture |
Voltage | Multivolt 120V-277V |
Wattage | 240 Watt |
Total Harmonic Distortion [THD] | <20% |
Power Factor | >0.9 |
ShineRetrofits Input:
Eiko's BAYE3 DLC Premium LED Round High Bay Light Fixture offers a dimmable solution that outperforms and provides better value than traditional 750W HID fixtures. It includes Controls Ready functionality, simplifying the integration of standalone sensors or Networked Lighting Controls through the included screw-in receptacle. With a high efficacy of up to 150 lm/W, it ensures efficient and powerful illumination. The fixture is available in fixed-wattage models of 100W, 150W, or 200W, and field-selectable wattages extend up to 240W, allowing flexibility to meet specific requirements. It offers both single CCT and field-selectable CCT options, providing versatile lighting choices. Featuring a CRI of over 80 and a 90° beam angle, it delivers excellent color rendering and broad coverage. With a rated life of over 54,000 hours (L70), it ensures long-lasting and reliable performance.
Certifications:
• UL Certified for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• IP65 Rated
• DesignLights Consortium® Premium Qualified - meets the requirements for the highest
DLC qualification for efficacy and lumen maintenance
Performance:
• High efficacy, up to 150 lm/W
• Available in fixed wattage models: 100W, 150W, or 200W and PowerSet models: power-selectable 150/130/100W and 240/200/180W
• Available in single CCT models: 4000K or 5000K CCT or FieldCCeT models: field-selectable CCT 35/40/5000K
• CRI: >80
• Beam Angle: 90°
• Rated Life L70:> 54,000 hours
Electrical:
• Input voltage: 120-277V or 120-347V
• 0-10V dimming, dim-to-off
• 12VDC Aux, 200mA max
• Surge protection: 6kV
• Power factor: >0.9
• THD: <20%
Thermal:
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature
• Ambient operating temperature with sensor (see selected sensor datasheet)
Construction:
• Matte black or white powder coat, forged aluminum
• Impact-resistant polycarbonate lens
• 10ft power and dimming cord
• Eyebolt included
Warranty:
• 5 Year limited warranty is available online. Contact your EiKO sales rep for additional details
Applications:
• Warehouses
• Manufacturing Plants
• Distribution Centers
• Grocery Stores
• Gymnasiums
• Indoor Recreational Facilities
• Cold Storage
• Big Box Retail
• Service Repair Centers
