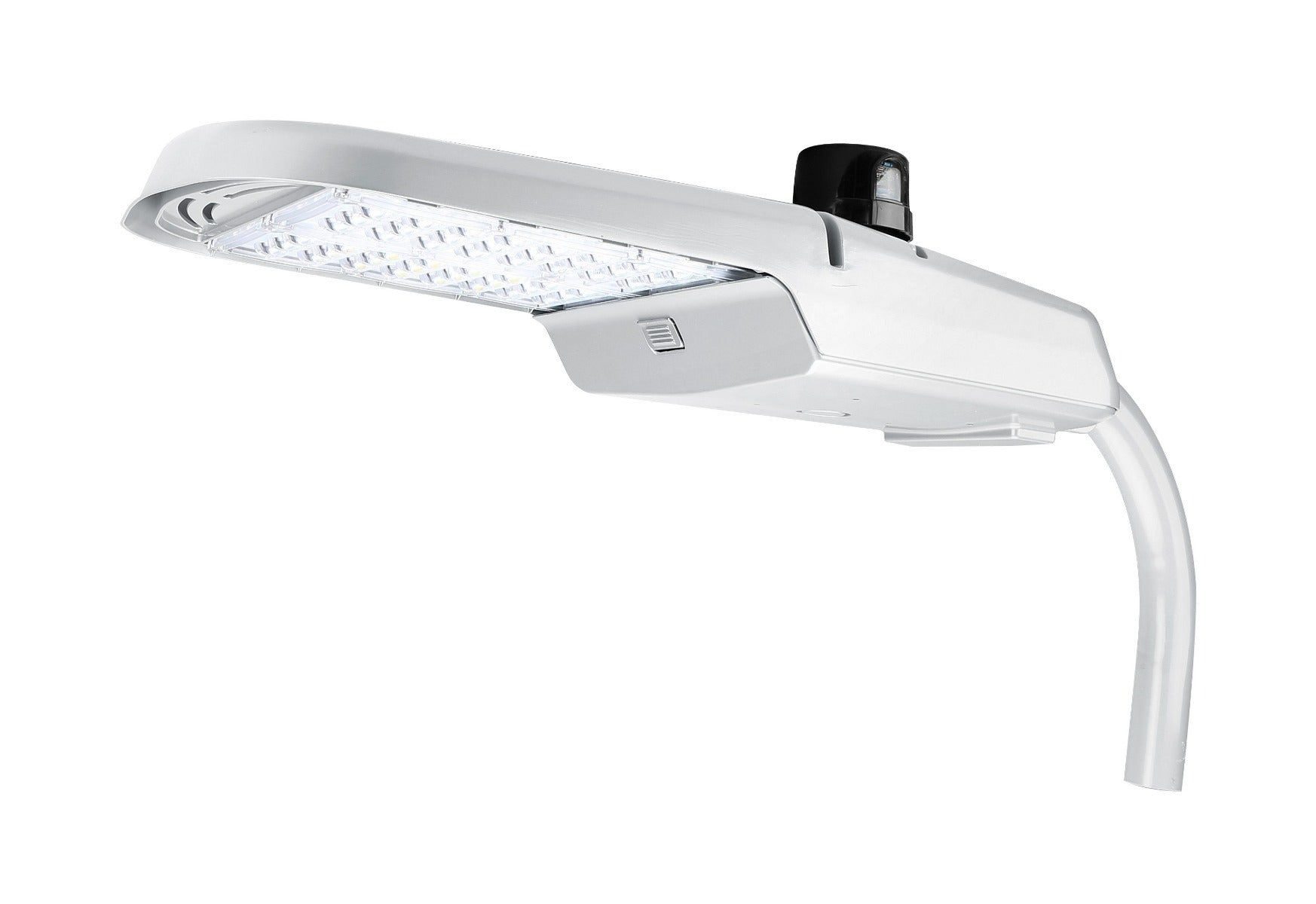

Arcadia Lighting ARL02 Series Roadway Lighting Fixture Dimmable with Built-in Photocell
PART# ARL02
Web Price
Please call 1-800-983-1315 for the lowest available price
- Lumen:9,300 - 20,000lm
- Wattage:150 Watt
-
-
| Type of Area | Pole / Street / Parking Lot, Road & Street |
|---|---|
| Certifications | CUL Listed, Dark Sky Compliant, DLC Premium, LM79 / LM80, UL Listed, IP66 |
| Dimmable | Yes |
| Lamp Life: | 50,000 Hours |
| CRI | 70 |
| Length | 20.8" - 23.84" |
| Width | 8.14 - 10.43" |
| Height | 4.27" - 4.52 |
| Lumen Output: | 9,300 - 20,000 |
| Manufacturer | Arcadia |
| Product Warranty | 5 Year |
| Part Number | ARL02 Series |
| Minimum Start Temperature | -40 Deg F |
| Technology | LED - New Fixture |
| Voltage | Multivolt 120V-277V |
| Wattage | 150 Watt |
ShineRetrofits Input:
Arcadia Lighting's Roadway Light Fixture offers reliable, energy-efficient illumination for outdoor spaces. Its heavy-duty cast aluminum housing is 3G vibration rated, ensuring durability, while optics meet Dark Sky requirements for reduced light pollution. Equipped with 1-10V dimming, a built-in 3-pin photocell, and IP66-rated waterproofing it’s ideal for wet locations. With an estimated 50,000-hour LED lifespan and a 5-year limited warranty, it’s a dependable solution for long-term performance.
Features:
• Heavy-duty cast Aluminum Housing and Removable Door 3G Vibration Rated to Ensure strength of Construction
• Optics Conform to Dark Sky Requirements
• Standard 1-10V Dimming and 10kA(120-277V) / Built-In 3pin Photocell
• UL for Wet Location, IP66 Rated
• Estimated 50,000-hour LED lifespan based on IES LM-80 and TM-21 Calculations
• 5-year limited warranty; Extended Labor Warranty Available
ShineRetrofits Input:
Arcadia Lighting's Roadway Light Fixture offers reliable, energy-efficient illumination for outdoor spaces. Its heavy-duty cast aluminum housing is 3G vibration rated, ensuring durability, while optics meet Dark Sky requirements for reduced light pollution. Equipped with 1-10V dimming, a built-in 3-pin photocell, and IP66-rated waterproofing it’s ideal for wet locations. With an estimated 50,000-hour LED lifespan and a 5-year limited warranty, it’s a dependable solution for long-term performance.
Features:
• Heavy-duty cast Aluminum Housing and Removable Door 3G Vibration Rated to Ensure strength of Construction
• Optics Conform to Dark Sky Requirements
• Standard 1-10V Dimming and 10kA(120-277V) / Built-In 3pin Photocell
• UL for Wet Location, IP66 Rated
• Estimated 50,000-hour LED lifespan based on IES LM-80 and TM-21 Calculations
• 5-year limited warranty; Extended Labor Warranty Available
